Service / Digital Solutions / QuickScan™ Grinding (QSG)

QuickScan™ Grinding (QSG)

Description Benefits Features Operation

QuickScan™ Grinding (QSG)

The QuickScan™ Grinding device is an advanced 3D scanning system for SAG Mills using an extendable arm installed in the feed chute. With QuickScan™ Grinding, full scans can be performed in as little as 15 minutes, providing high-quality images without compromising personnel safety or disrupting mill operations. By eliminating the need for personnel exposure and improving scan precision, QuickScan™ offers a more efficient and safer solution for analyzing SAG mills.





Benefits

Time-Saving Automation

Automatically scans without moving or removing the feed chute, streamlining operations and maximizing efficiency.

Increased Safety

Eliminates the need for personnel to enter the mill, reducing exposure to potential risks.

Fast, Protocol-Free Scanning

Enables rapid scanning without requiring complex protocols

Features

QuickScan™ Grinding: Fast, Safe, and High-Precision Mill Scanning

✔ Captures high-quality images without pre-cleaning, outperforming conventional methods.
✔ Eliminates personnel exposure by removing the need for manual intervention inside the mill.
✔ Minimizes mill stoppages for wear surveys, optimizing operational efficiency

Technical Specifications

  • Customized Design – Tailored to fit each mill’s specific requirements.
  • Installation Requirements – Feed chute opening of 300×250 mm.

Operation

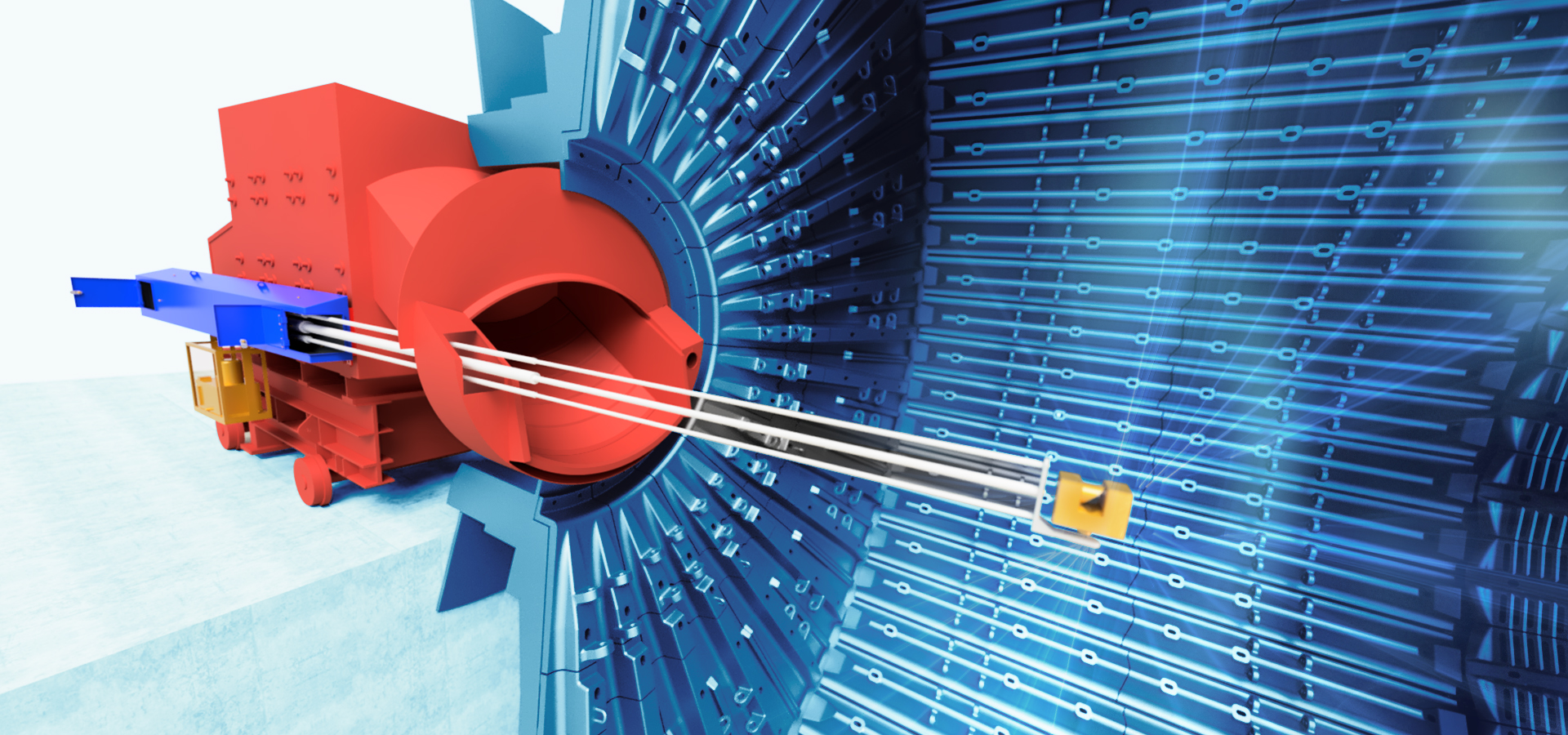

A high-precision scanner is mounted on the QuickScan™ Grinding telescopic arm, which extends to position the scanner at the center of the mill for external scanning. Once the process is complete, the telescopic arm retracts to its original position, and the scanner is safely removed—ensuring efficiency, accuracy, and enhanced safety.
