QuickScan™ Crusher (QSC)

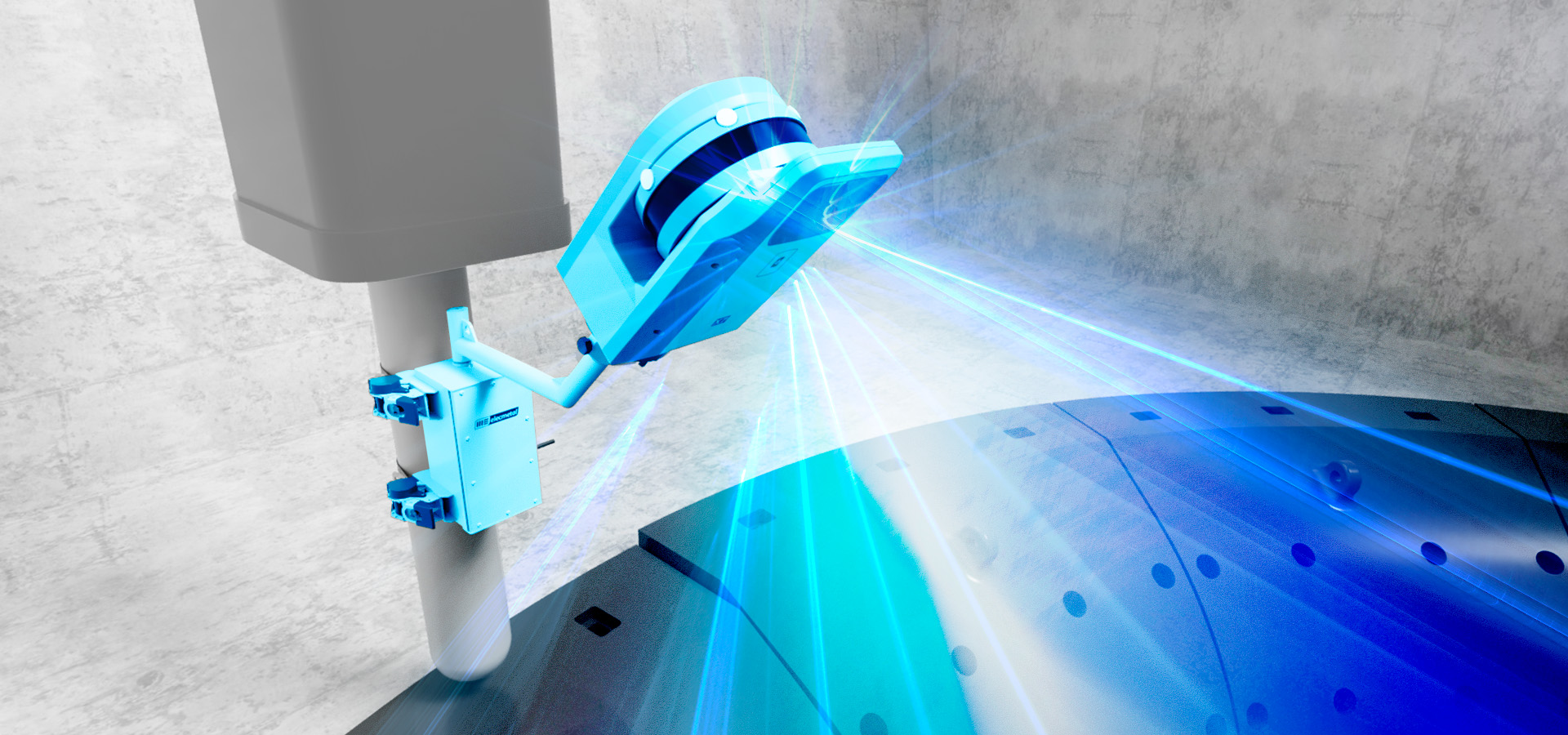

The QuickScan™ Crusher device is an advanced tool designed to be installed on rock breaker hammer tools. It significantly enhances the safety and quality of primary crusher scans compared to traditional methods. By eliminating the need for personnel exposure and improving scan precision, QuickScan™ offers a more efficient and safer solution for analyzing primary crushers.

Download File

Benefits

Remote Scanning

Perform scans without the need for manual cleaning or the entry of personnel, thanks to the robotic arm

Increased Safety

Eliminates the need for people to be near the primary crusher, reducing safety risks.

High Compatibility

Works with various market scanners (e.g., Faro, Trimble, Leica), providing image resolution comparable to traditional methods.

Quick Setup

Installs in just five minutes without interrupting the crusher’s operation

Remote Control

Operated via phone for ease-of-use and safety, allowing remote management from a safe location.

Features

Robotic Arm: Facilitates the attachment and movement of the scanner with remote control capabilities.
Efficient Installation: Simple setup in minutes, avoiding production interruptions.
Remote Operation: Scanning performed via cellphone, eliminating the need for manual intervention.
Detailed Visualization: Allows scanning inside the cup, improving the view of critical areas like the first-row concaves and lower mantle.
Extended Analysis: Provides comprehensive analysis with the ability to position the scanner on both sides of the spider, covering a larger area.

Operation

QuickScan™ Crusher enables the efficient and safe analysis of primary crushers. With its robotic arm and remote operation features, it simplifies the scanning process by avoiding manual cleaning and reducing personnel exposure. The device provides high-quality images and detailed insights into critical components of the crushing equipment, ensuring accurate assessments and minimizing downtime.
